Tilt 120 folding bike - grey
Store Availability
If you want to discover mixed-mode travel, combine your Fold 120 with another means of transport (car, caravan, etc.).

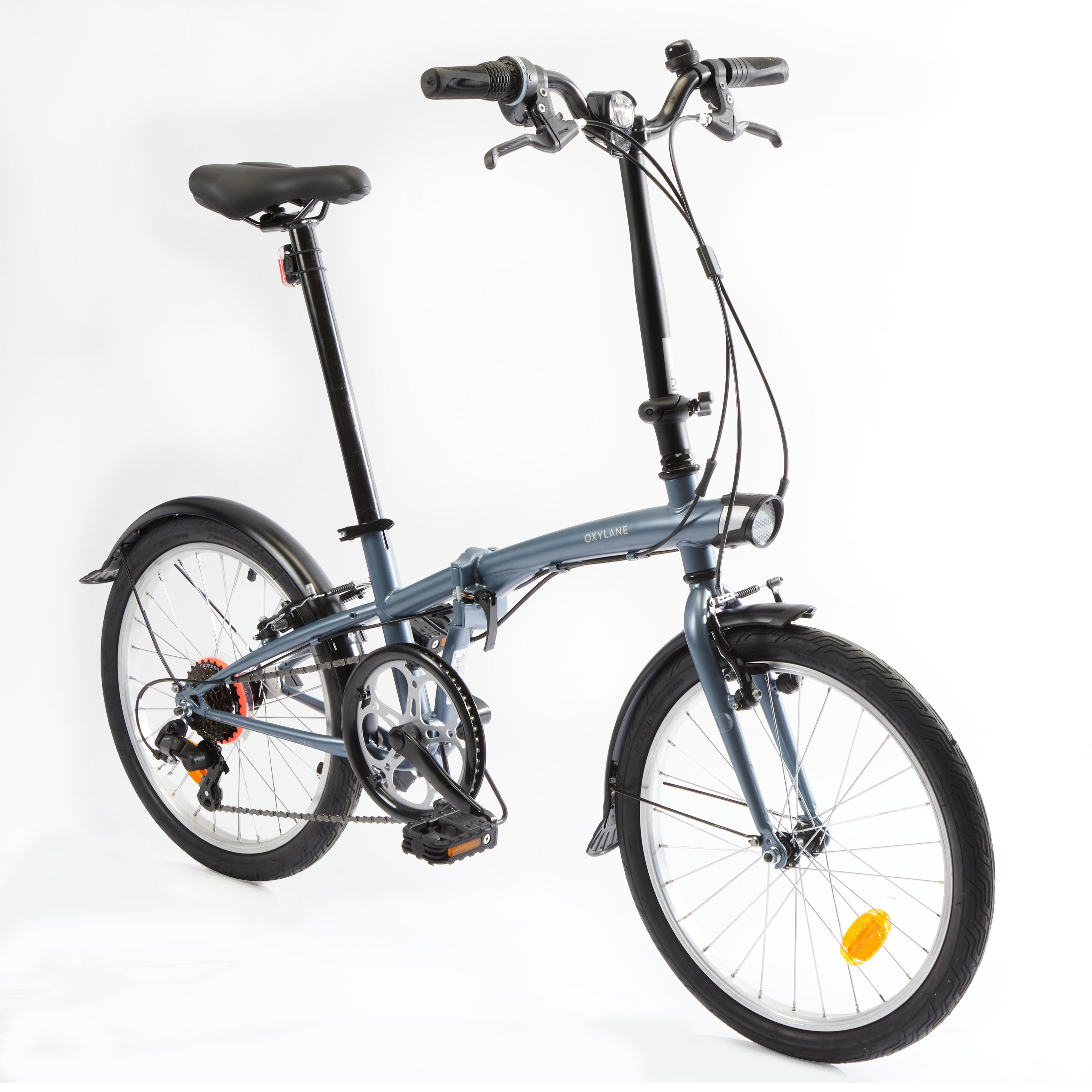

Want a bike you can take anywhere? This 20-inch 6-speed folding bike is perfect for commuting as it folds away in less than 30 seconds. Or pop it in the boot of your car for a fun weekend away.
BENEFITS
Compact design
Folded L/H/W: 78 x 66 x 36 cm.Unfolded L/H/W: 144 x 112 x 58 cm
Easy transport
Takes just 30 seconds to fold so you can quickly unfold, ride and carry it!
Versatility
Expand the possibilities. Tackle new terrains with the 6 speeds.
Lifetime warranty
Lifetime warranty on the frame, stem (excl. hinge), rigid fork and handlebar.
Weight
14.5 kg
Instructions
DownloadTECHNICAL INFORMATIONS
Frame

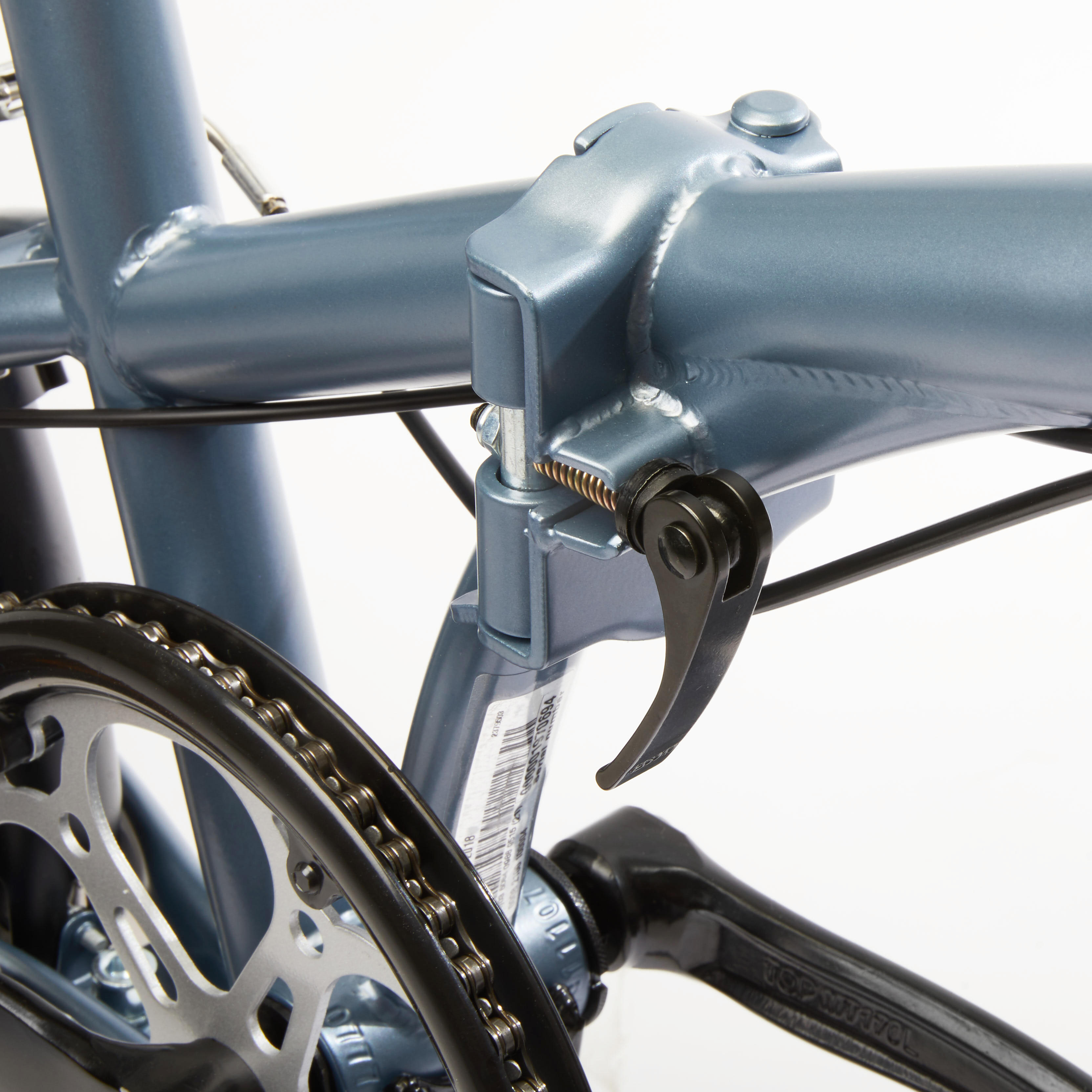

Hi-Ten steel frame. The easy lateral-fold system means the bike takes up little space: at home, at the office, in the boot of a car or in a camper... you'll forget your bike is even there.

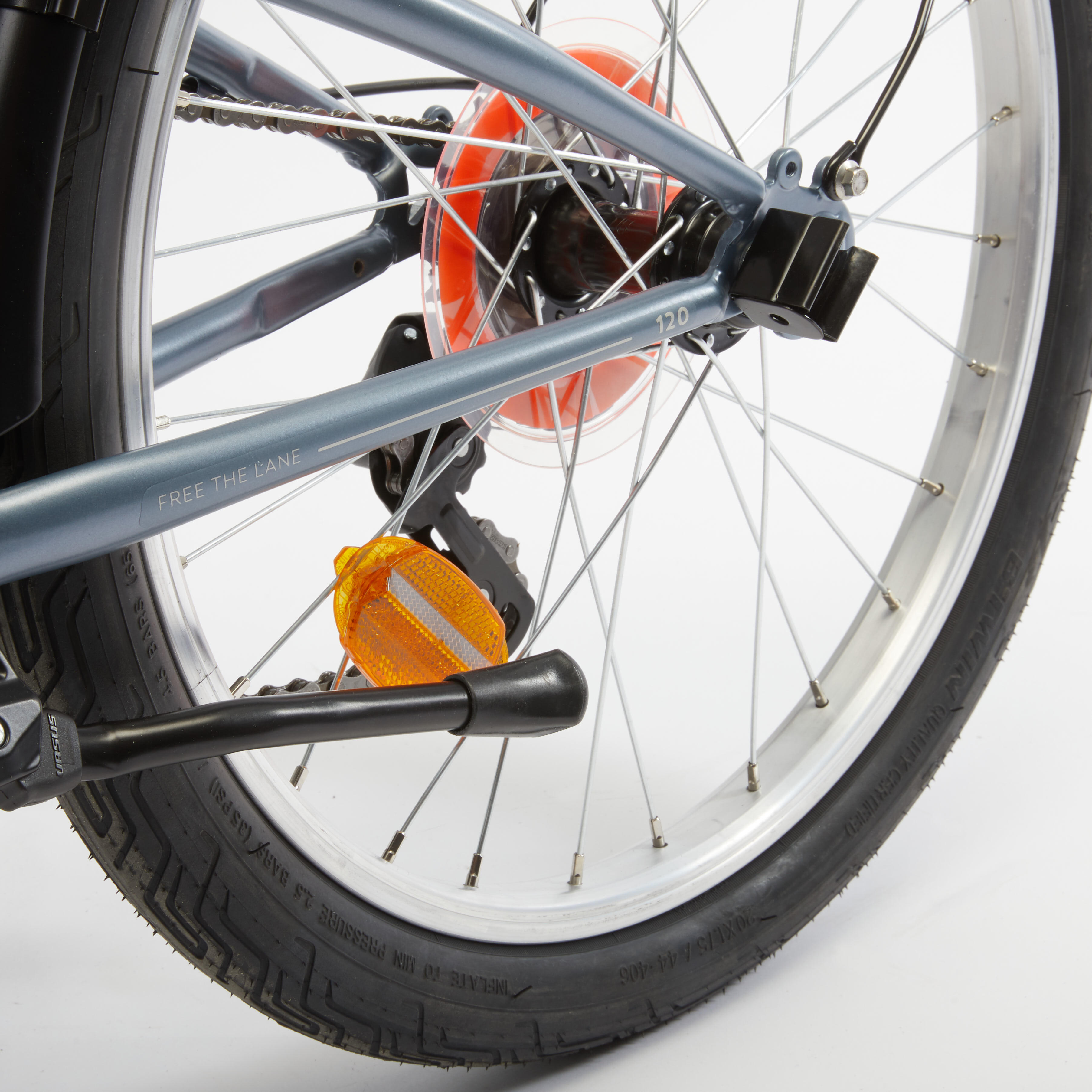

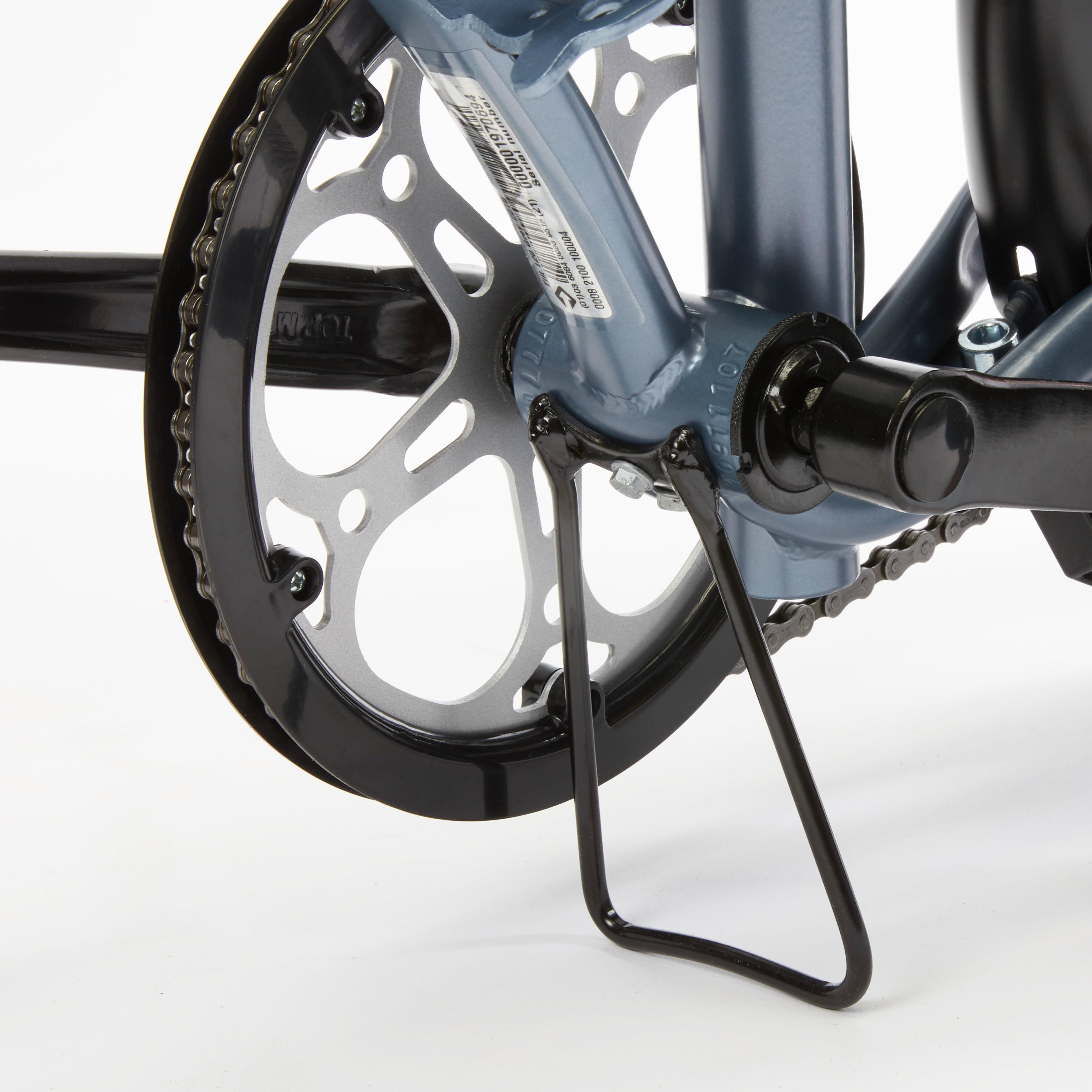

In order to improve your bike's stability once folded, the frame is equipped with a bike stand under its base.
Fork
Hi-ten steel fork for greater durability.
Drivetrain

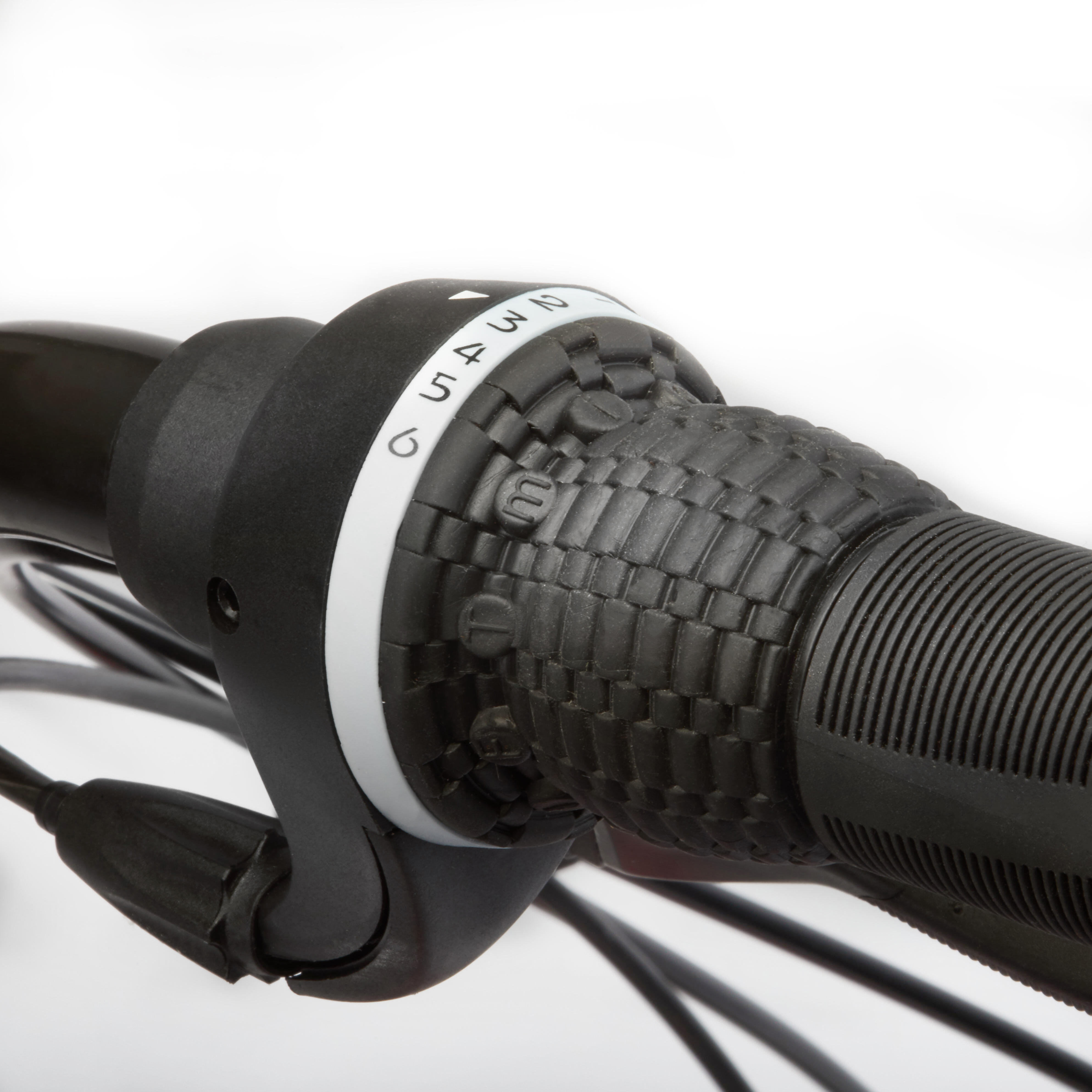

The Oxylane 120 can be used on most gradients and has a 6-speed derailleur. Changing gears is very easy using the grip shifter.
52-tooth chainring, 6-speed Shimano TZ20 14/28 freewheel.
Metres of development: - smallest development: 2.96m per turn of the pedals, 28 teeth
- largest development: 5.90 m for every pedal turn, 14 teeth
Brakes
The steel V-Brakes guarantee effective and progressive braking.
Handlebar / stem / steering
Steel low-rise bars with a rise of 60mm to adjust your position on the bike to suit your body and make the bike easier to handle. Handlebar width: 560 mm.

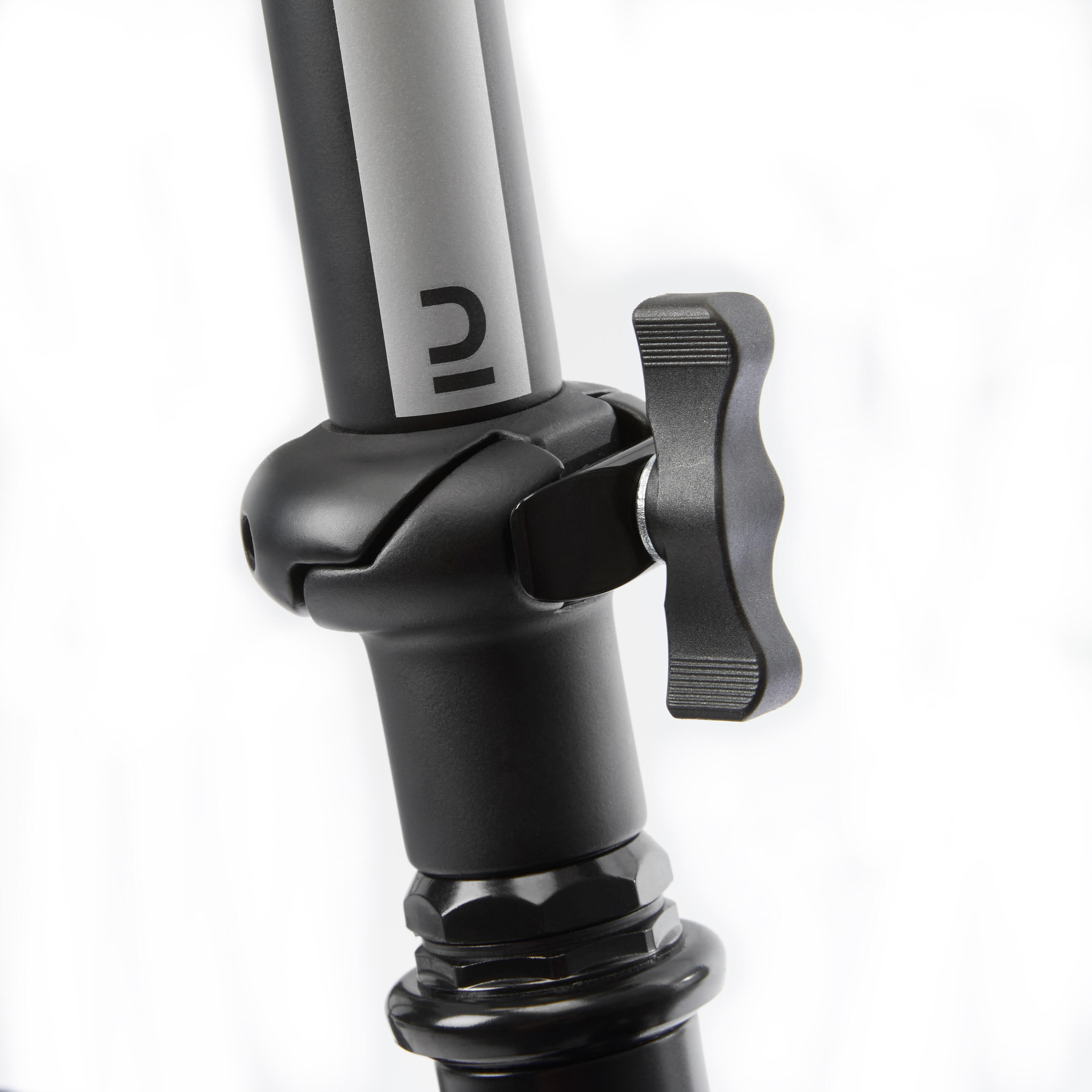

Folding, non-adjustable stem made from aluminium for increased rigidity.
Distance from saddle to handlebar: 540 mm. Bottom bracket to saddle distance: min. 520mm - max. 740mm
Saddle/Seat post

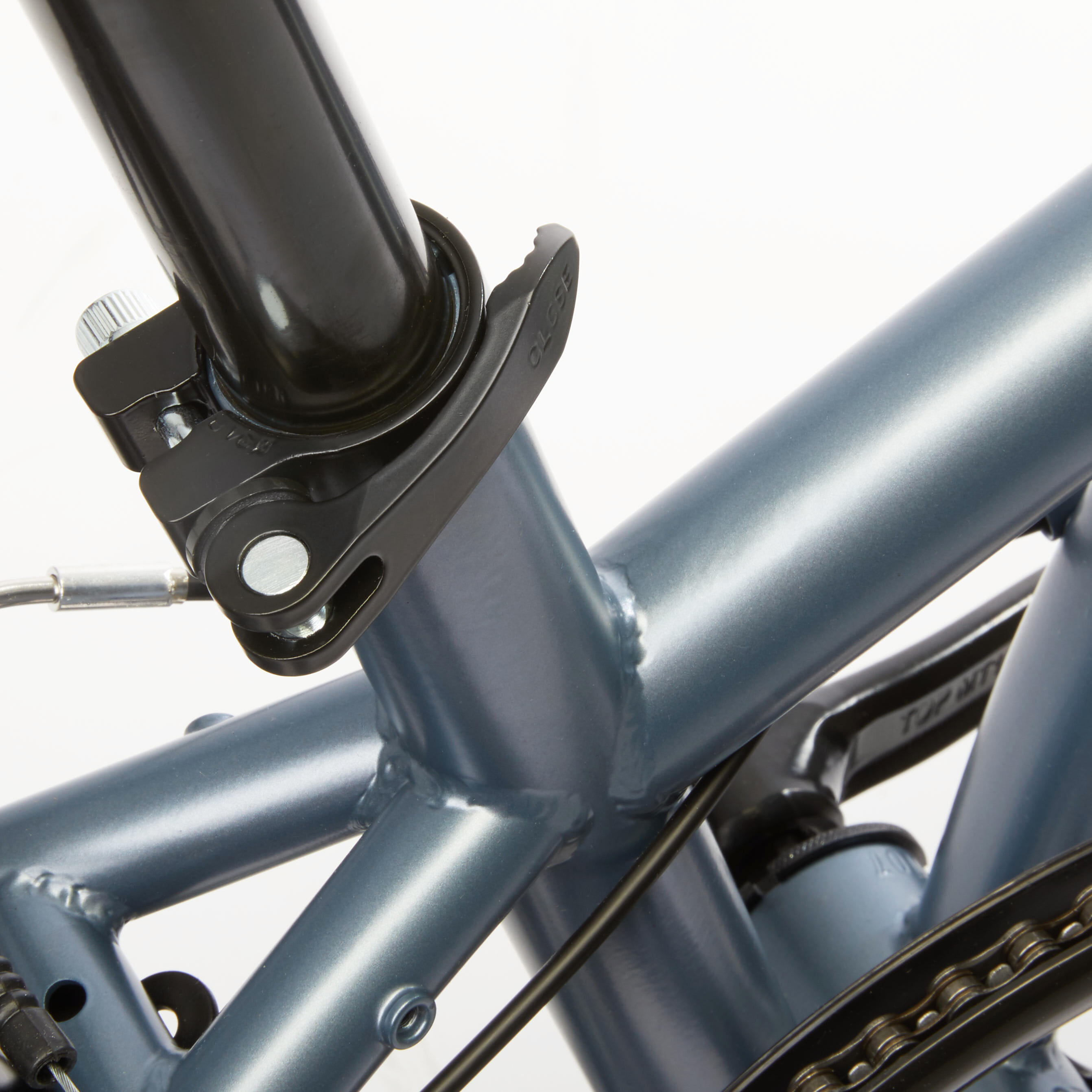

Comfortable, seamless foam saddle and steel seat post (diam: 31.6 mm).
Wheels
20-inch, single-wall rims. Steel hub.

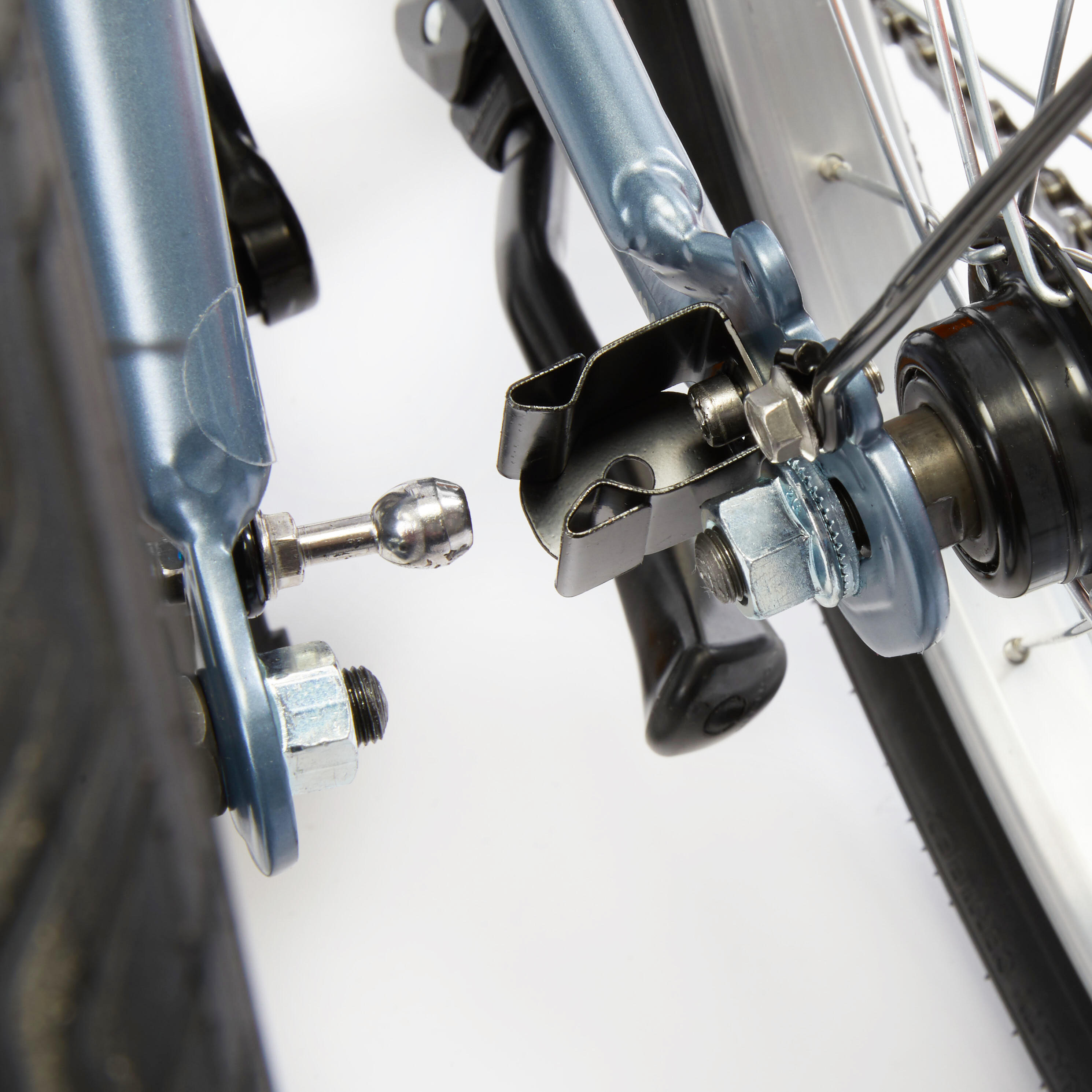

System that holds the wheels together, making it easier to handle and store the bike once folded.
Tyre

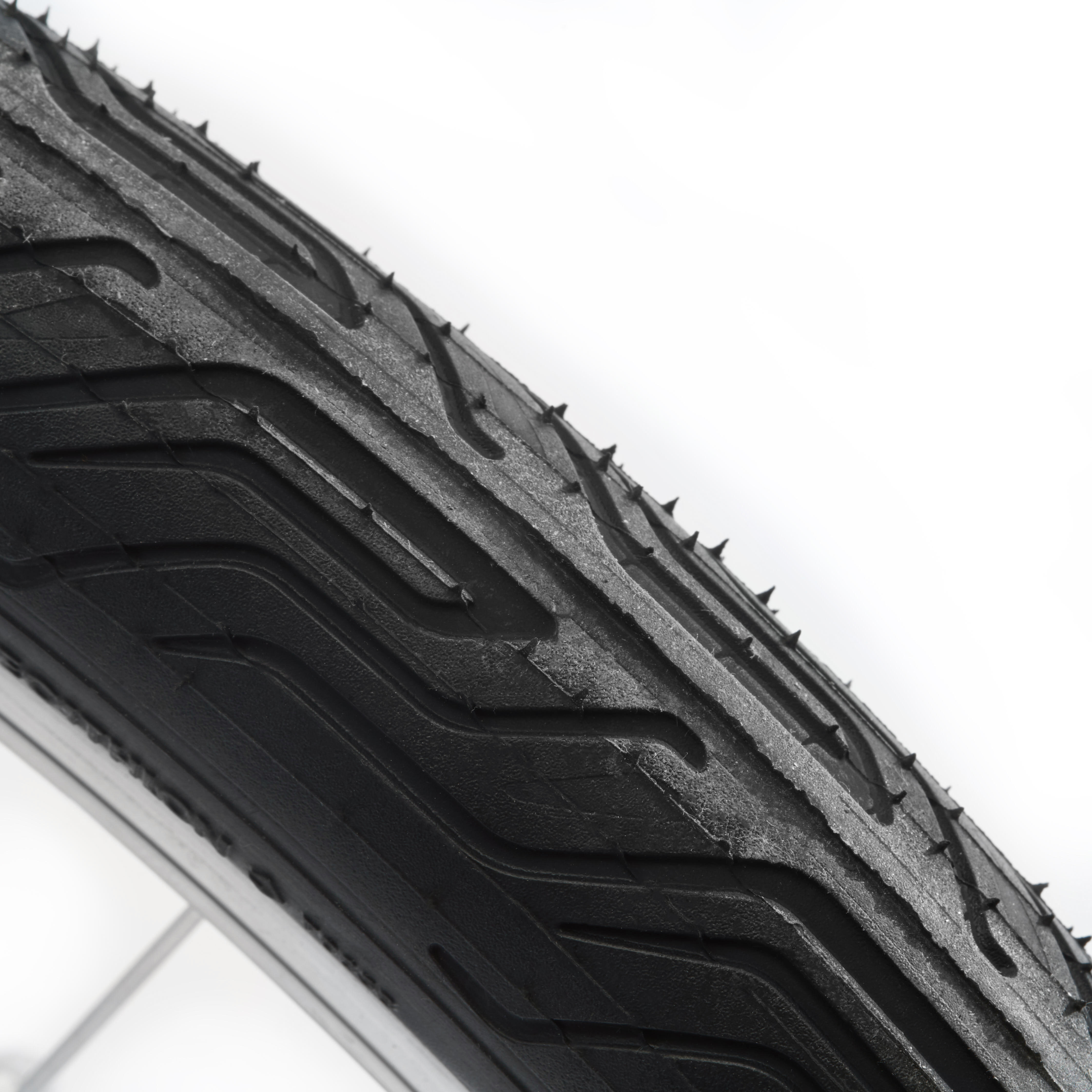

20 x 1.75 gumwall city tyres. We've developed these tyres to give you the best balance between performance and grip.
Crankset

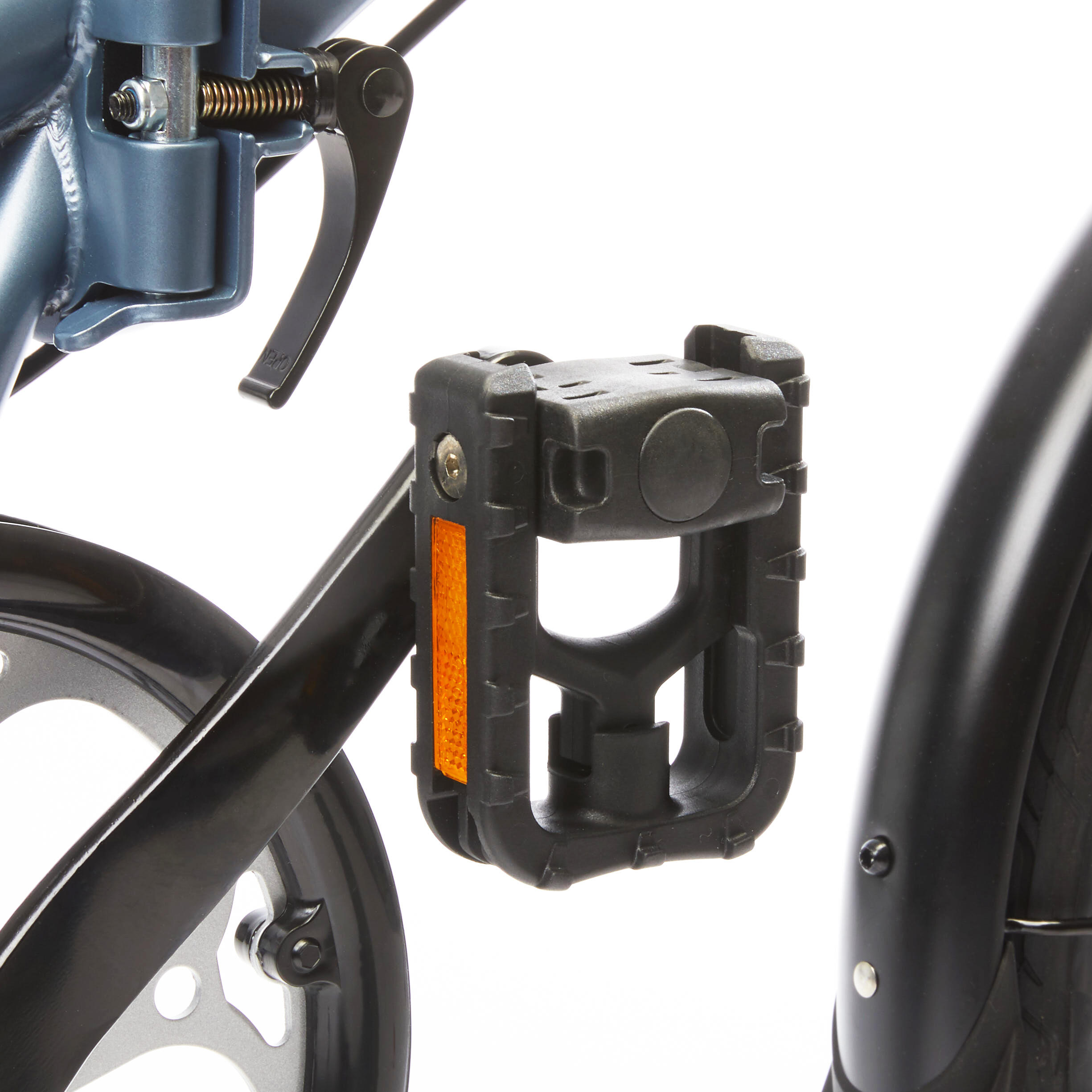

The fold-up pedals reduce bulk when the bike is folded. Once the pedals are folded up and the stem folded down, the bike can be stored against a wall and takes up very little space (26 cm wide). Steel cranks: 170mm. Double chainguard to stop your chain jumping and protect it from dirt.
Accessories / equipment
Front and rear battery-operated lights.
Compatibility
Bike compatible with:
- the TILT transportation cover
- the B'TWIN folding bike pannier rack

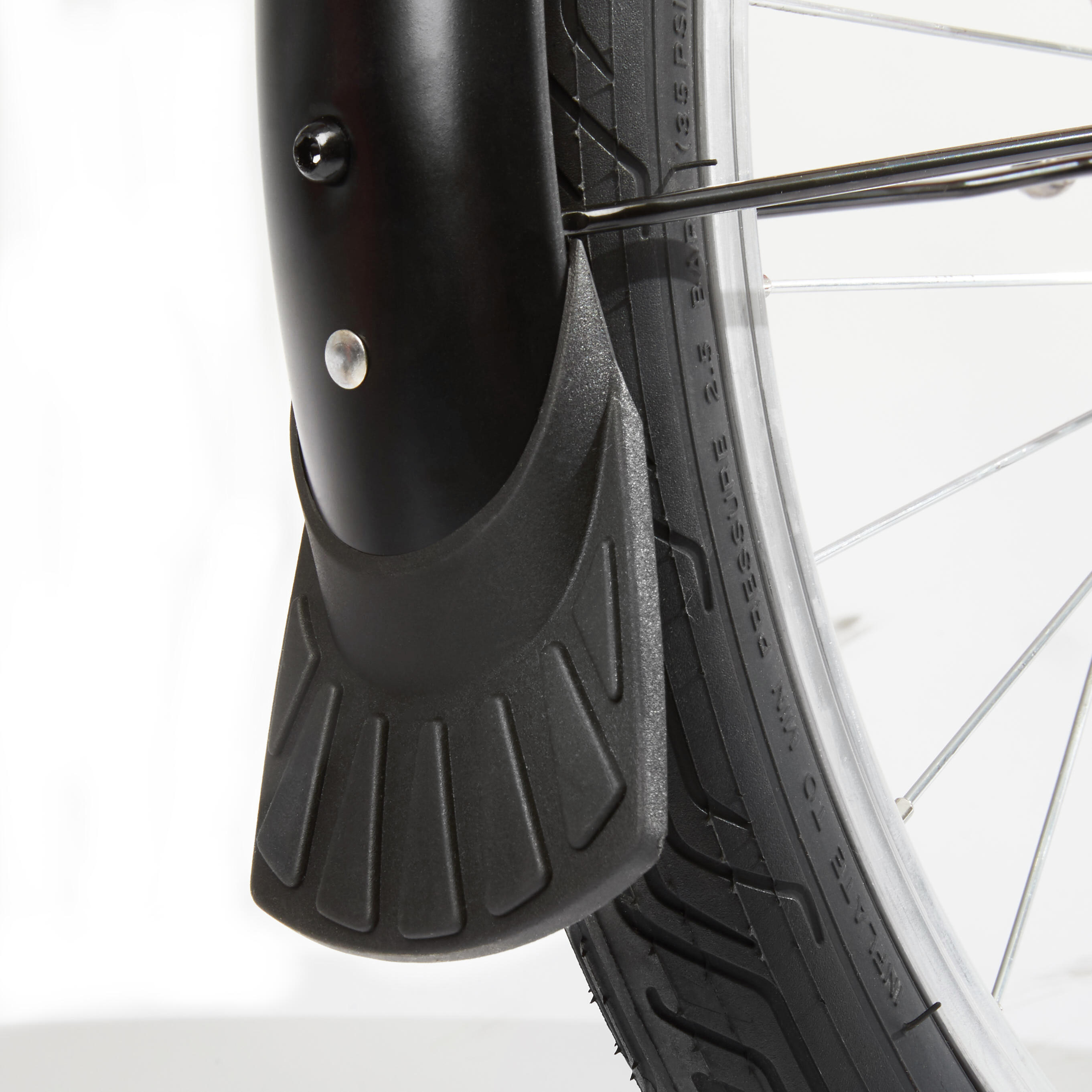

- 20'' mudguard
The 120 folding bike is incompatible with the baby carrier or kids' bike trailers.
User size and weight
One frame size only.
This bike's geometry is comfortable for cyclists between 1.45 and 1.85 m tall.
This bike complies with the requirements of standard ISO 4210.
The maximum load it can take is 100 kg (bike + user + luggage). Above this weight, the warranty no longer applies.
composition
composition
Frame: 100.0% Steel
Tips for storage and maintenance
Restrictions on use
Not suitable for tricks.
TESTS AND WARRANTY
Parts guarantee
Lifetime warranty on the frame, stem (excl. hinge), rigid fork and handlebar.
